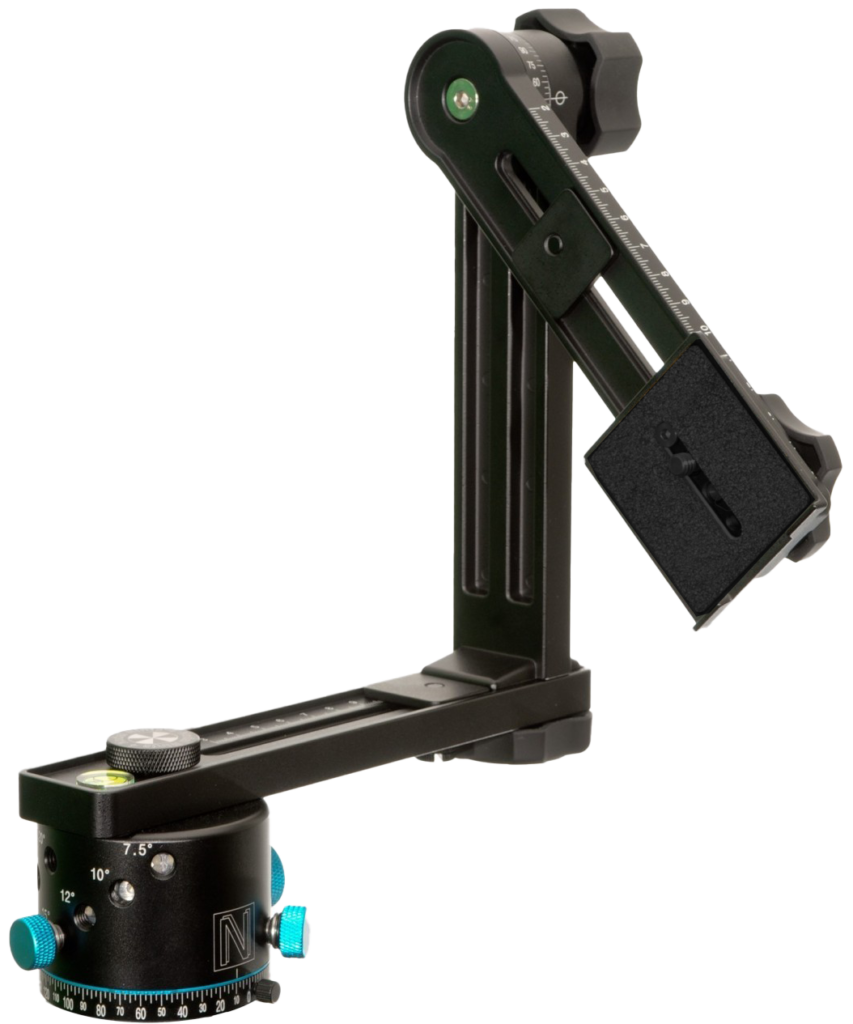

Fanotec Nodal Ninja 5 with RD16 Rotator Tripod Head Hire
RD16 Rotator Head
• 3/8 inch mounting threads
• 62 mm diameter
• 49 mm height
• 2.5 degree rotation markings
• Locking rotation
• Aluminium alloy
Nodal Ninja 5
• Accommodates most DSLR cameras
• Accepts a range of lenses such as 8mm Sigma, Canon 70-200mm
• 15 degree detents on upper arms with positive locks
• 2.5 degree marking on upper arm rotator, can produce high res mosaics
• Accepts loads up to approx 10 kgs
• Easy to mount for landscape mode
An integral part of a VFX Data Wrangler kit, The Fanotec Nodal Ninja 5 with RD16 Rotator Tripod Head provides 360° photography, capturing lighting references needed for VFX vendors and artists on productions.
Our array assembly has been manufactured to be extremely light weight, with the metal components we built constructed from sheet metal between 4 and 10 mm in thickness.
Our custom hardware, cameras lenses and remote features such as the 3 FIZ motors contribute to the overall weight.
This assembly has 6mm thick aluminium components. It is our lightest, production ready configuration including all accessories, within the max payload limit of the Ronin 2. It can be used with this gimbal on a drone or on a tracking vehicle.
The final weight is subject to the accessories used. The listed weight is without any accessories except FIZ motors. This platform is better suited to heavy duty applications where weight is less of a dividing factor.
We designed our detachable custom cheese plate for maximum mounting and threading options at the base of our array.
All of our assemblies are lined with M4, 1/4″-20 and 3/8″ mounting threads for infinite mounting options.
RED KOMODO-X™ BRAINS
QTY 3
| KOMODO-X™ Sensor Specs | |
|---|---|
| Sensor | KOMODO-X™ 19.9MP Super 35mm Global Shutter CMOS |
| Effective Pixels | 6144 × 3240 |
| Sensor Size | 27.03mm x 14.26mm (Diagonal: 30.56mm) |
| Dynamic Range | 16.5+ stops |
RED KOMODO 6K (4th CAM)
QTY 1
| KOMODO 6K | |
|---|---|
| Sensor | KOMODO 19.9MP Super35 CMOS sensor |
| Effective Pixels | 6144 x 3240 |
| Sensor Size | 27.03mm x 14.26mm (Diagonal: 30.56mm) |
| Dynamic Range | 16+ stops |
ZEISS CP.3 21MM T2.9 XD LENSES
QTY 3
Our VFX array is equipped with a matched set of Carl Zeiss CP.3 xD 21mm lenses, ensuring uniformity throughout the stitched image. The CP.3 lenses showcase ZEISS’s renowned clarity and precision, boasting full-frame coverage ideally suited for the RED KOMODO-X™ Cameras. Carl Zeiss eXtended Data Technology captures essential lens data for post-production teams, aiding in achieving optimal stitching results
The ZEISS eXtended Data (XD) technology, based on the Cooke /i* technology, introduces enhanced opportunities for simplifying and improving the precision of workflows in image capture and processing, particularly in VFX. XD is a distinctive technology that also delivers real-time data on the lens’ distortion and shading characteristics.
ZEISS eXtended Data enhances efficiency and cost-effectiveness in VFX, especially for compositing material from our Array which provides frame-accurate details on:
Lens shading** characteristics related to the focal point and effective T-stop
Zeiss Cooke /i* technology offers crucial lens data that delivers frame-accurate details on various aspects:
STITCHED PLATE
Our Array produces a stitched image measuring 18000 x 3500 pixels (160° FOV), including a 25° FOV overlap for reliable vendor processing. We understand that every vendor has a different set of requirements their Array workflow, so we designed a simple, live stitching review system which accommodates for all scales of productions.
Our service is provided with an Array operator and AC’s our kit can be hired in independently.
Teradek
We would like to understand the requirements of your project. To begin your rental enquiry online you will need ID, Proof of Address, Trade References.
