WF10001

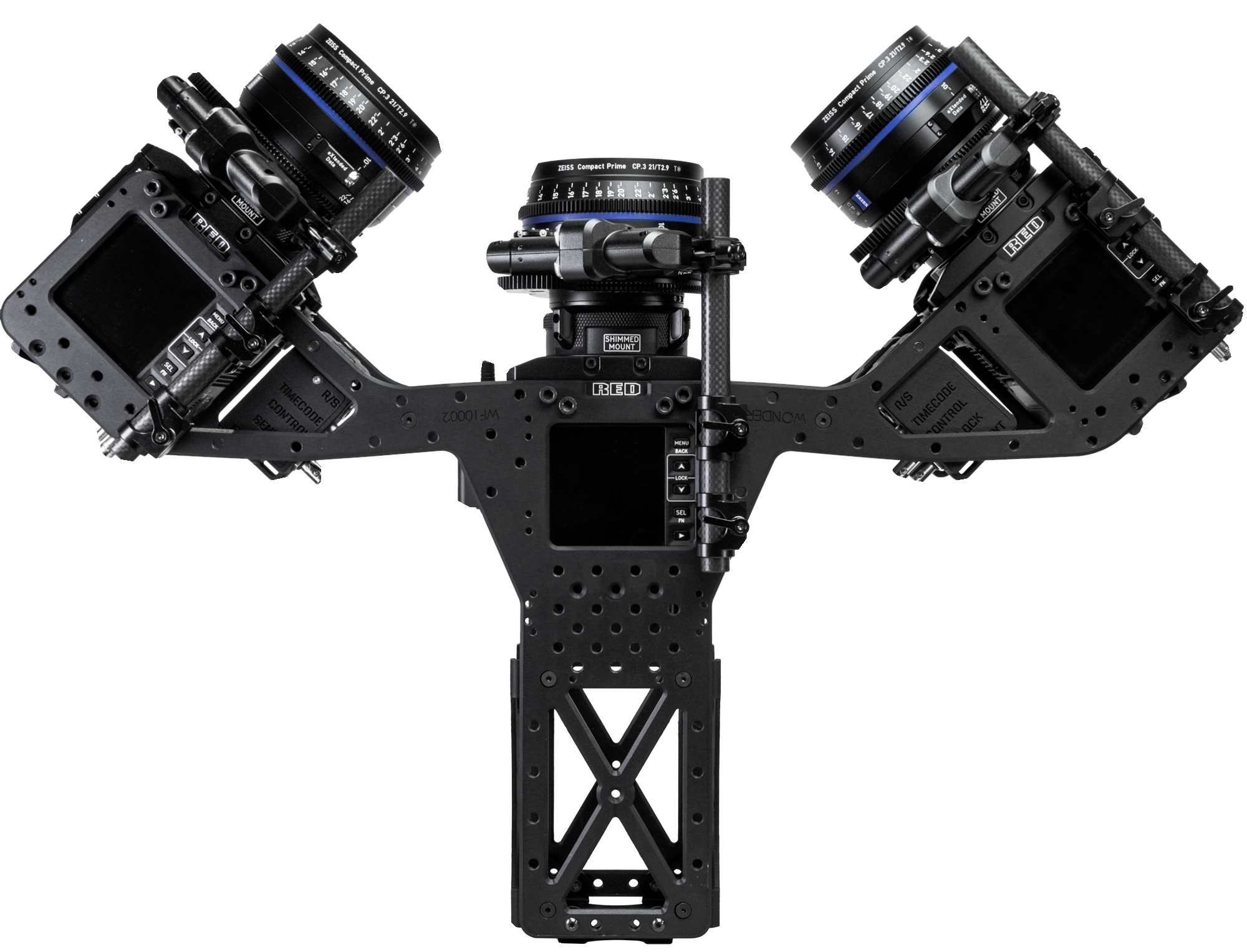

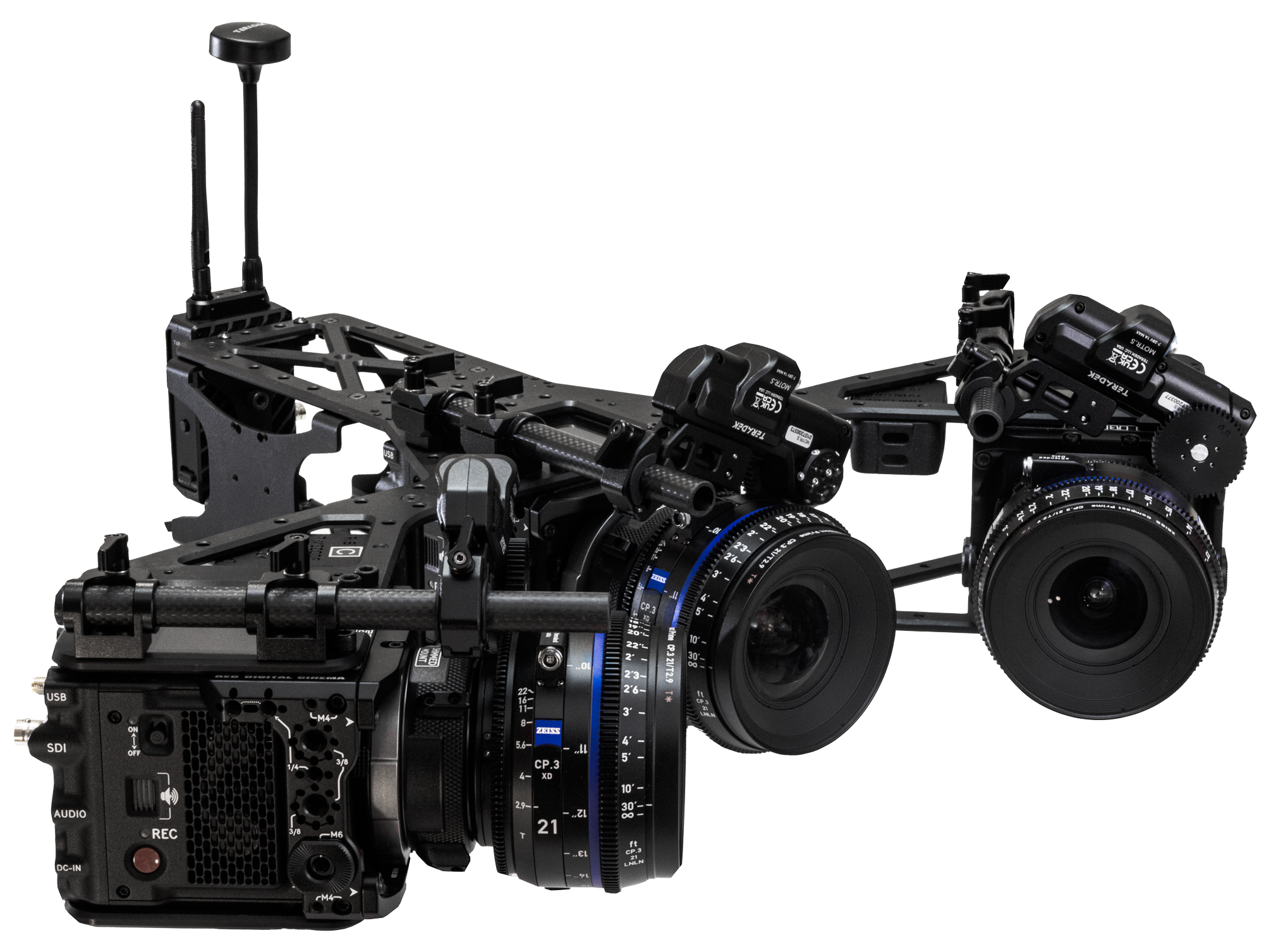

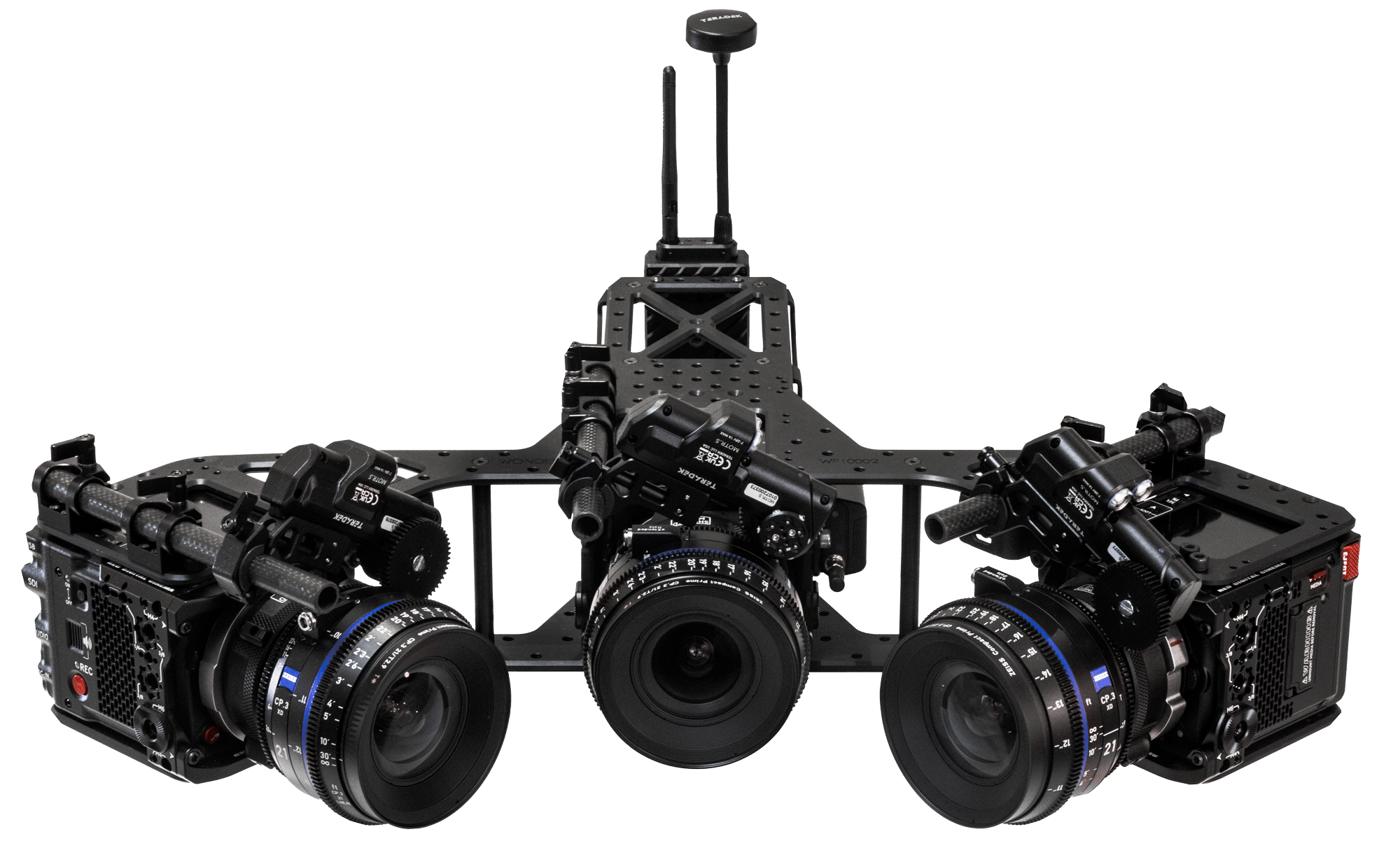

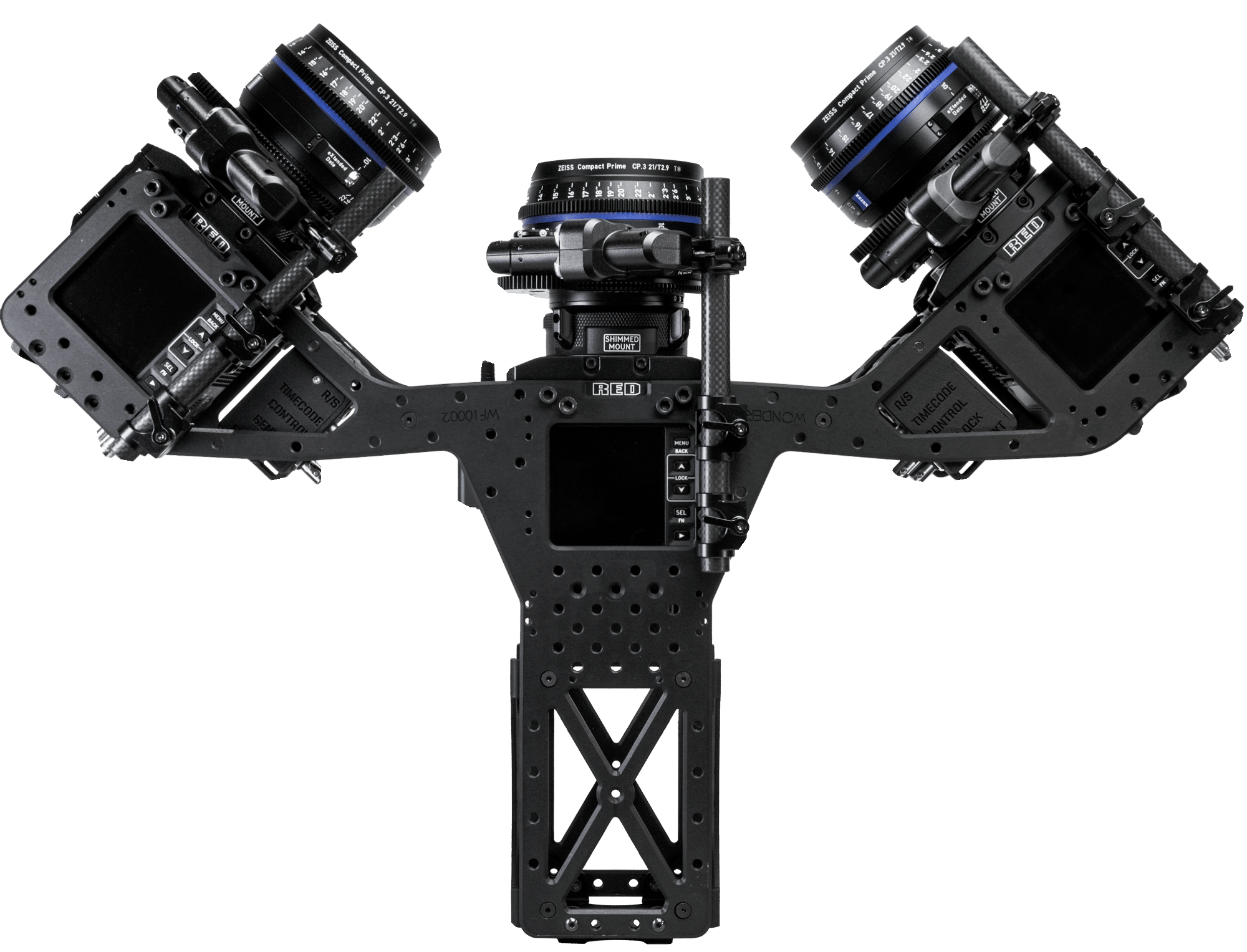

Wonderfilm 3-Way (3 x RED KOMODO-X + 3 x ZEISS 21mm CP.3 XD) 160° Array Rig

Wonderfilm 3-Way (3 x RED KOMODO-X + 3 x ZEISS 21mm CP.3 XD) 160° Array Rig

Wonderfilm Pictures’ 3-way RED KOMODO-X VFX Array rig integrates Teradek’s Bolt 6 wireless monitoring, lens control, & R/S from 1500 ft away. This light weight rig has been built bespoke by our in-house engineer, using hardware all housed inside one neat assembly.

• 3 x RED KOMODO-X Brains
• 3 x ZEISS 21mm CP.3 XD
• Teradek wireless monitoring, lens control, R/S
• 160° FOV
• 25° FOV overlap
• 18K stitched plate

13KG

DETAILS

WF10001

Wonderfilm 3-Way (3 x RED KOMODO-X + 3 x ZEISS 21mm CP.3 XD) 160° Array Rig

Wonderfilm Pictures’ 3-way RED KOMODO-X VFX Array rig integrates Teradek’s Bolt 6 wireless monitoring, lens control, & R/S from 1500 ft away. This light weight rig has been built bespoke by our in-house engineer, using hardware all housed inside one neat assembly.

• 3 x RED KOMODO-X Brains
• 3 x ZEISS 21mm CP.3 XD
• Teradek wireless monitoring, lens control, R/S
• 160° FOV
• 25° FOV overlap
• 18K stitched plate

13KG

TECH SPEC

Our array assembly has been manufactured to be light weight, with the metal components we built constructed from sheet metal between 4 and 10 mm in thickness.

WP10001 – 13.2KG

This assembly has 6mm thick aluminium components. It is a light configuration including all accessories, within the max payload limit of the Ronin 2. It can be used with a gimbal on a drone or on a tracking vehicle.

WP10004 – 9.5KG

The final weight is measured once all the required hardware is assembled on the rig.

All our assemblies are lined with M4, 1/4″-20 and 3/8″ mounting threads for infinite mounting options.

We designed a detachable custom cheese plate for maximum mounting and threading options at the base of our array.

RED KOMODO-X Brains

6144 × 3240 px

QTY 3

KOMODO-X Sensor Specs
SensorKOMODO-X 19.9MP Super 35mm Global Shutter CMOS
Effective Pixels6144 × 3240
Sensor Size27.03mm x 14.26mm (Diagonal: 30.56mm)
Dynamic Range16.5+ stops

RED KOMODO 6K (Optional 4th Camera)

6144 × 3240 px

QTY 1

KOMODO 6K
SensorKOMODO 19.9MP Super35 CMOS sensor
Effective Pixels6144 x 3240
Sensor Size27.03mm x 14.26mm (Diagonal: 30.56mm)
Dynamic Range16+ stops



ZEISS 21mm T2.9 CP.3 XD lenses

21° FOV

QTY 3

Our VFX array is equipped with a matched set of ZEISS CP.3 XD 21mm lenses, ensuring uniformity throughout the stitched image. The CP.3 lenses showcase ZEISS’s renowned clarity and precision, boasting full-frame coverage ideally suited for the RED KOMODO-X cameras. ZEISS eXtended Data Technology captures essential lens data for post-production teams, aiding in achieving optimal stitching results.

ZEISS eXtended Data

The ZEISS eXtended Data (XD) technology, based on the Cooke /i* technology, introduces enhanced opportunities for simplifying and improving the precision of workflows in image capture and processing, particularly in VFX. XD is a distinctive technology that also delivers real-time data on the lens’ distortion and shading characteristics.

ZEISS eXtended Data enhances efficiency and cost-effectiveness in VFX, especially for compositing material from our Array which provides frame-accurate details on:

  • Lens distortion characteristics dependent on the focal point
  • Lens shading characteristics related to the focal point and effective T-stop

ZEISS Cooke /i* technology offers crucial lens data that delivers frame-accurate details on various aspects:

  • Lens Name, type, and focal length of the lens
  • Calibrated focusing distance
  • Calibrated T-stop value
  • Real-time depth-of-field data and hyperfocal distance
  • Horizontal field of view
  • Position of the entrance pupil

Wonderfilm’s VFX Array utilises the power of the Teradek ecosystem with the Bolt 6 LT 1500 feet TX/RX Deluxe kit and CTRL.5 controller. This kit enables wireless multiple-lens iris/focus control, run/stop triggering, and multiple-camera video playback. Everything on the rig can be controlled or monitored remotely up to 1500 feet away.

Stitched Plate

18432K x 3240K
160° FOV
25° FOV overlap

Our Array produces a stitched image measuring 18000 x 3500 pixels (160° FOV), including a 25° FOV overlap for reliable vendor processing. We understand that every vendor has a different set of requirements for their Array workflow, so we designed a simple, live stitching review system which can accommodate all scales of productions.
