Wonderfilm's
RED KOMODO-X
VFX Array Rig
LIVE

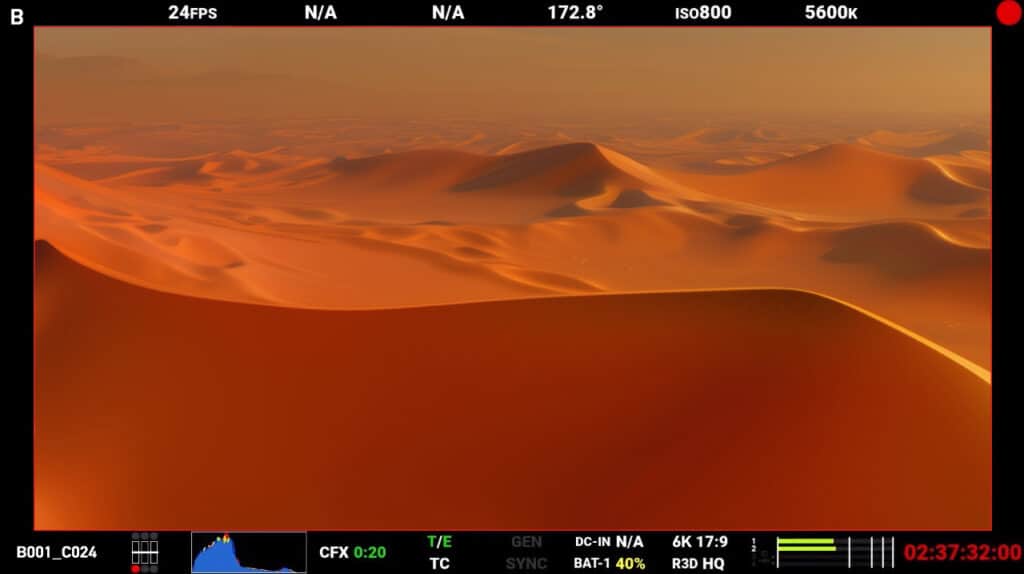

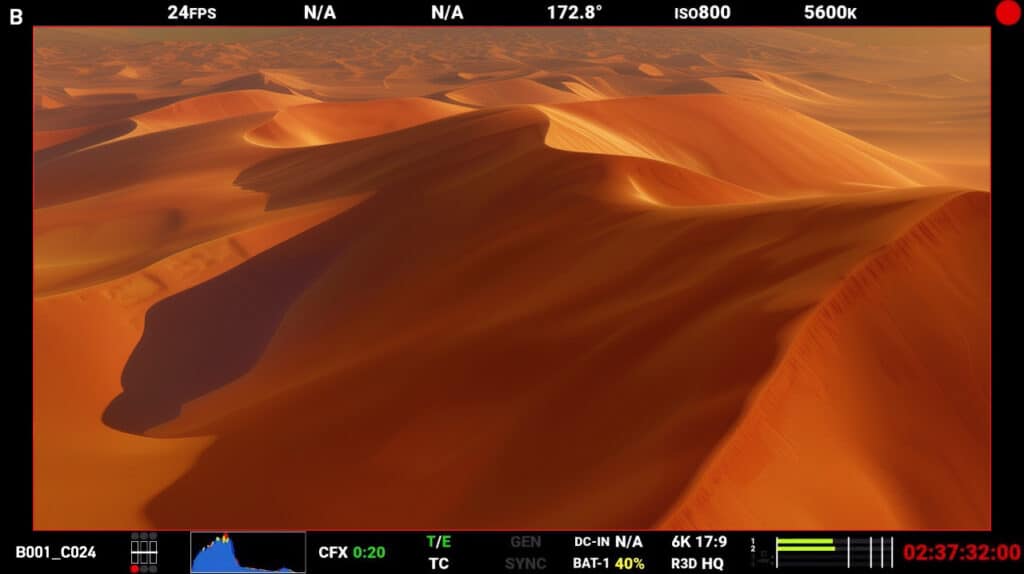

PLATES

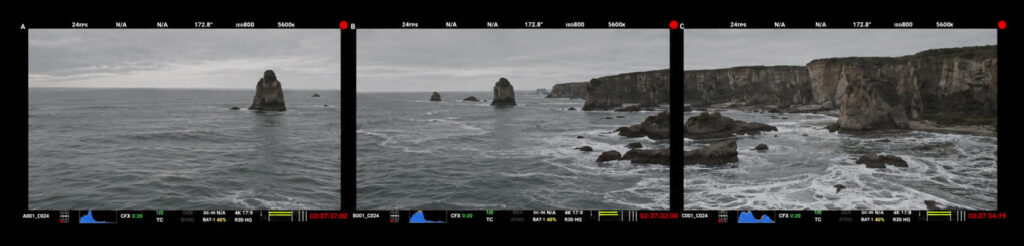

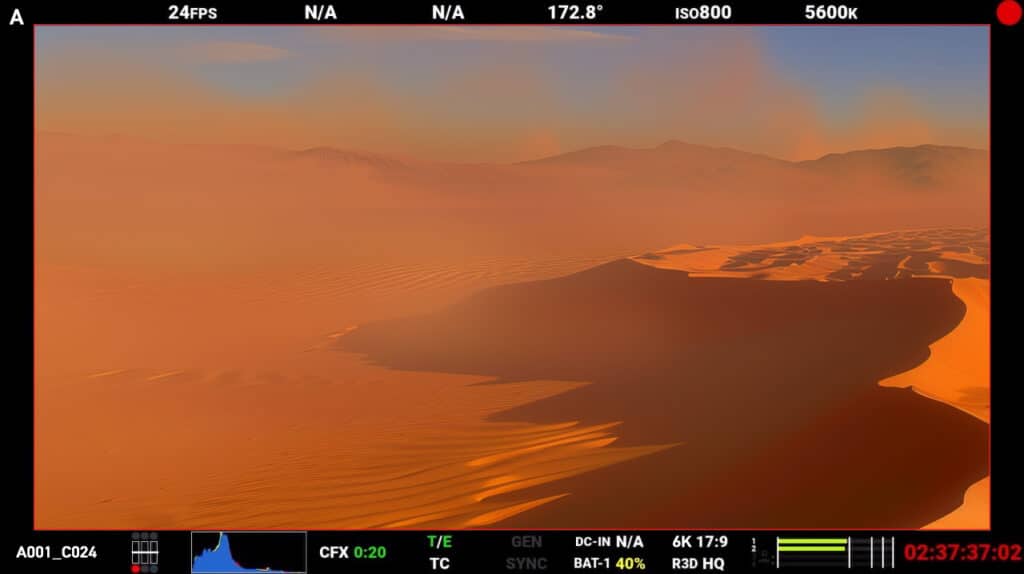

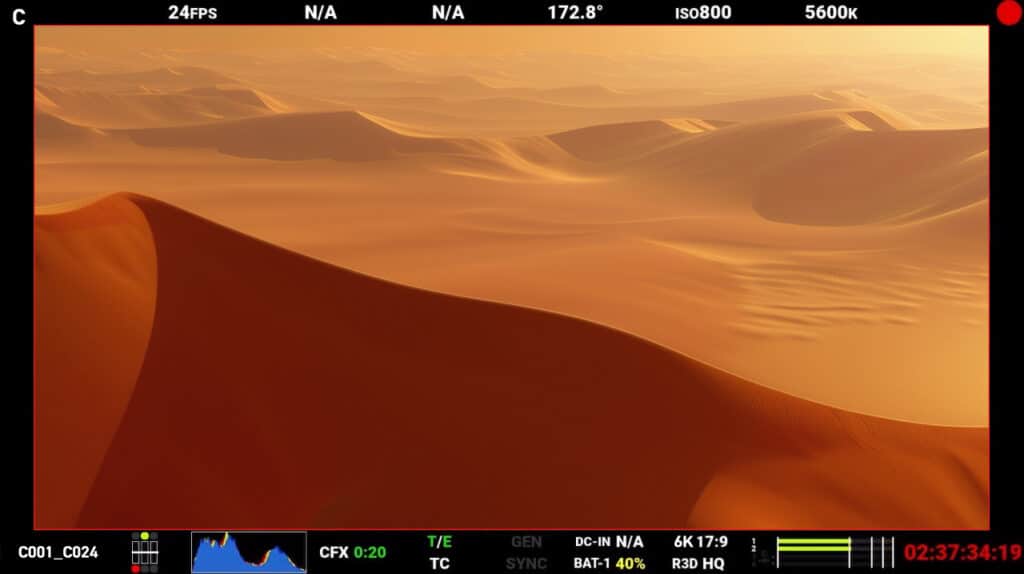

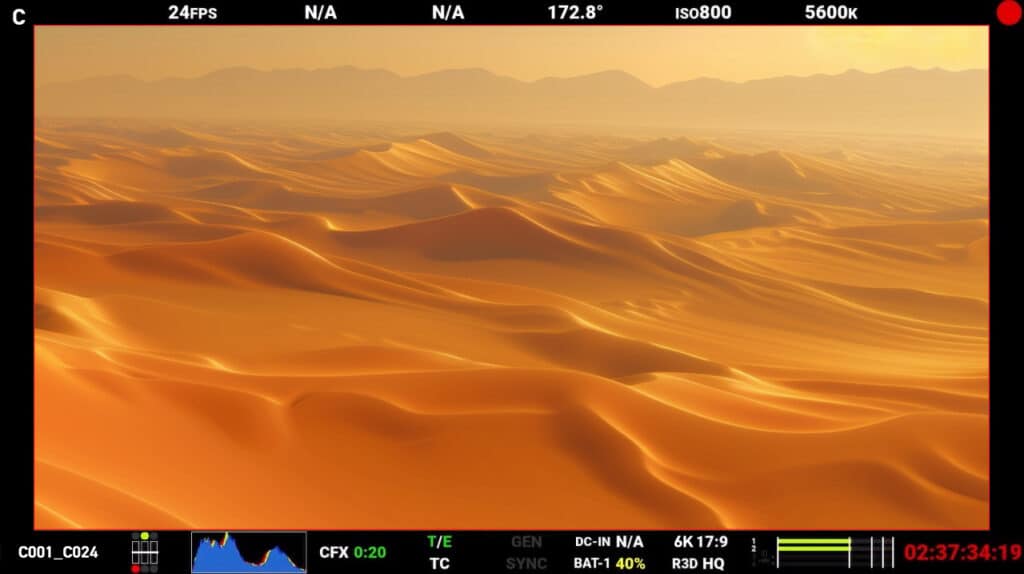

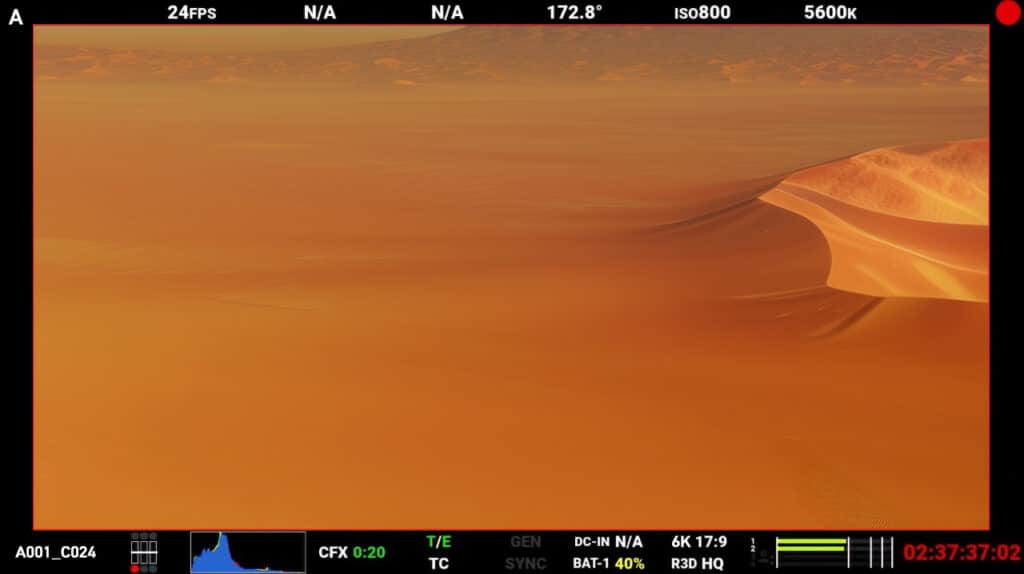

The system records a wide 160° field of view across three matching cameras, delivering high-resolution background plates designed for VFX, CGI integration, and virtual production workflows.
GROUND & AERIAL
Assembly
Wonderfilm Pictures’ 3-Way RED KOMODO-X Array with ZEISS 21mm CP.3 XD Lenses caters for large scale productions looking for a practical VFX plate shoot solution, aerial or ground. Wonderfilm’s VFX Array is one of the first in the world to utilise the RED KOMODO-X Body.

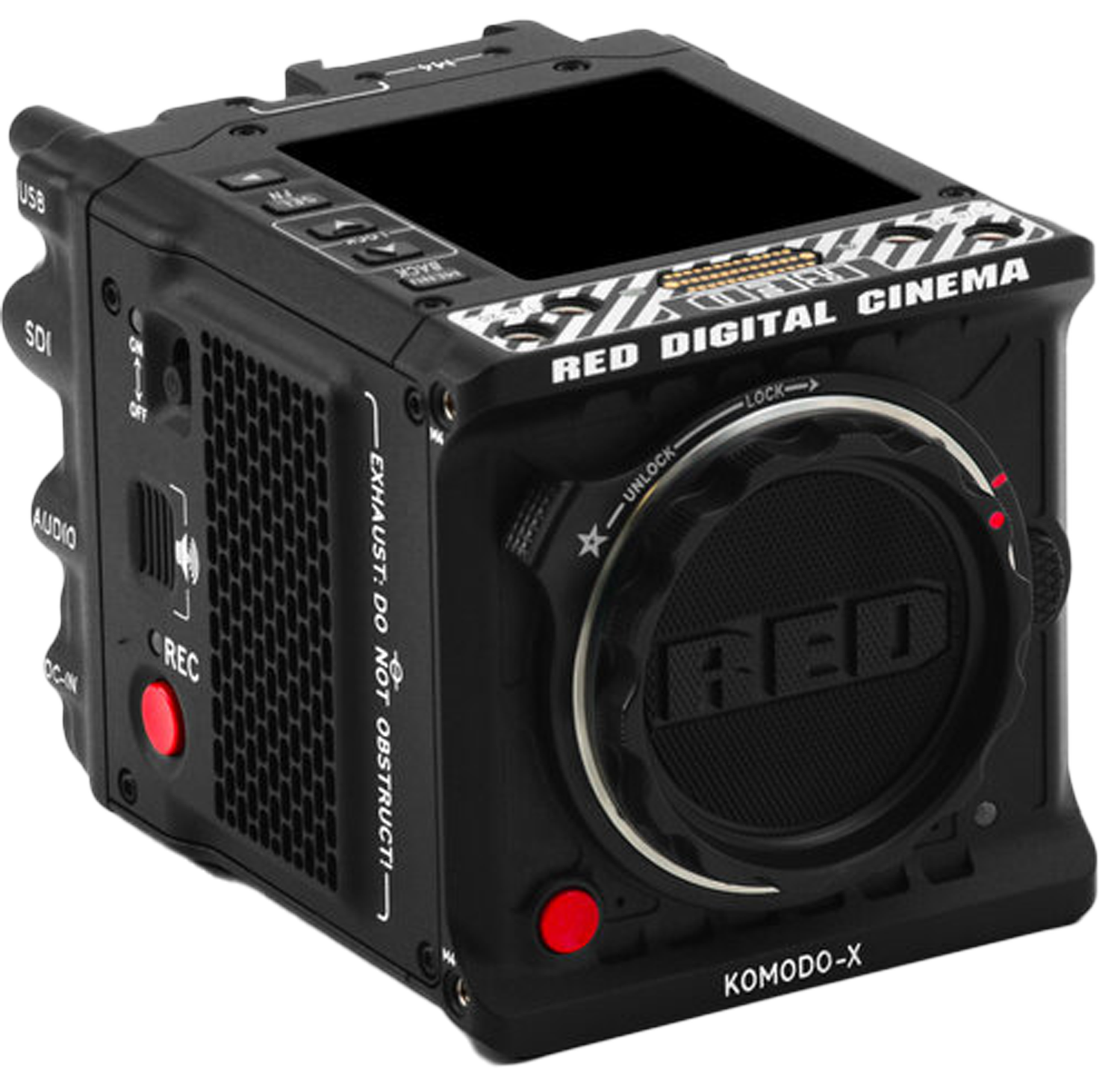

RED KOMODO-X Brains
6144 × 3240 px
QTY 3
| RED KOMODO-X Sensor Specs | |
|---|---|
| Sensor | RED KOMODO-X 19.9MP Super 35mm Global Shutter CMOS |
| Effective Pixels | 6144 × 3240 |
| Sensor Size | 27.03mm x 14.26mm (Diagonal: 30.56mm) |
| Dynamic Range | 16.5+ stops |
RED KOMODO-X Brains
6144 × 3240 px
QTY 3
| RED KOMODO-X Sensor Specs | |
|---|---|
| Sensor | RED KOMODO-X 19.9MP Super 35mm Global Shutter CMOS |
| Effective Pixels | 6144 × 3240 |
| Sensor Size | 27.03mm x 14.26mm (Diagonal: 30.56mm) |
| Dynamic Range | 16.5+ stops |
ZEISS CP.3 21mm T2.9 XD Lenses
21° FOV
QTY 3
Stitched Plate
15008px x 3240px Stitched Plate
160° FOV
27.9% Overlap
6mm Assembly

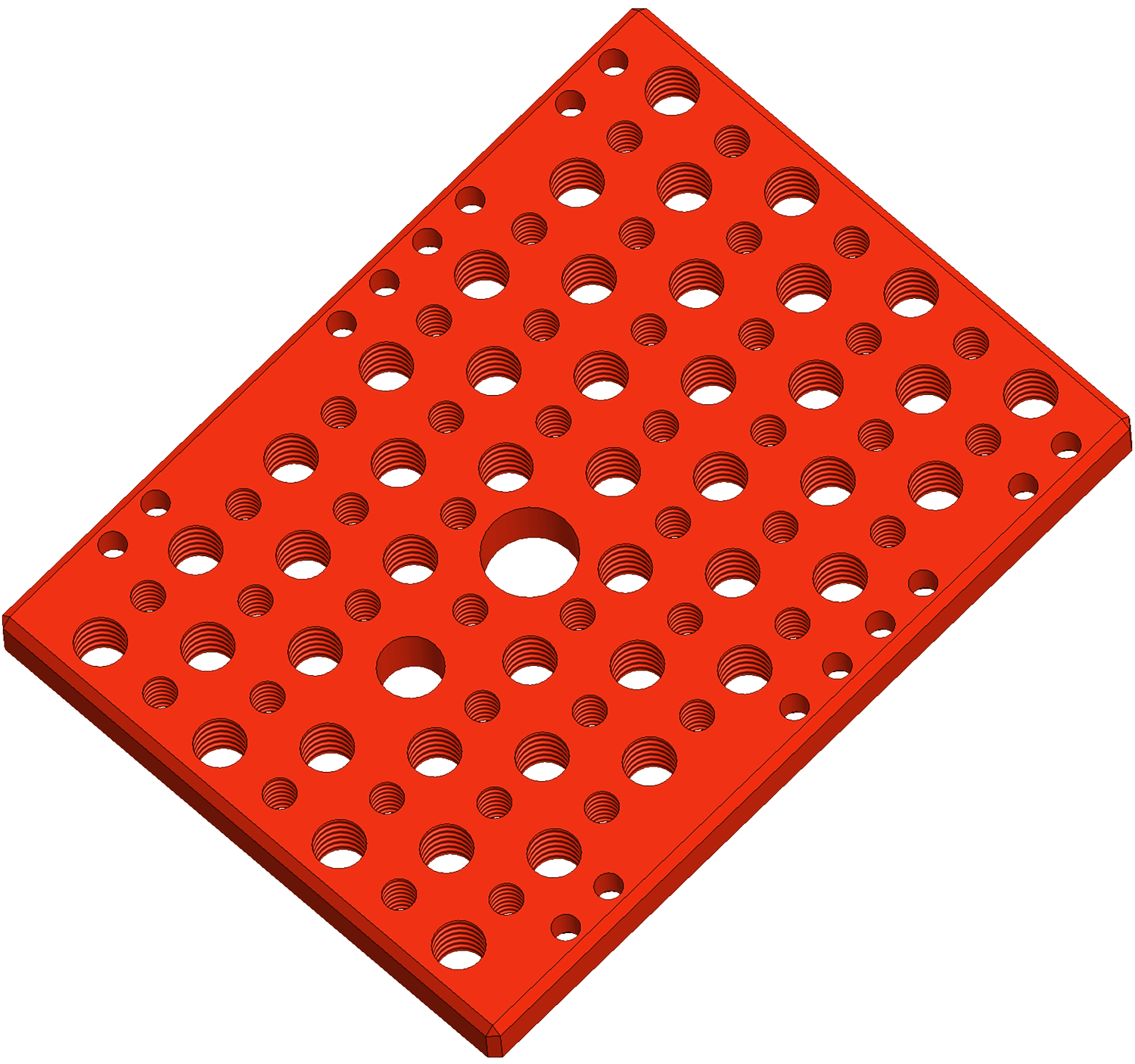

Custom cheese plate with M4, 1/4″-20 and 3/8″ mounting threads
VFX Array
Special
Powers

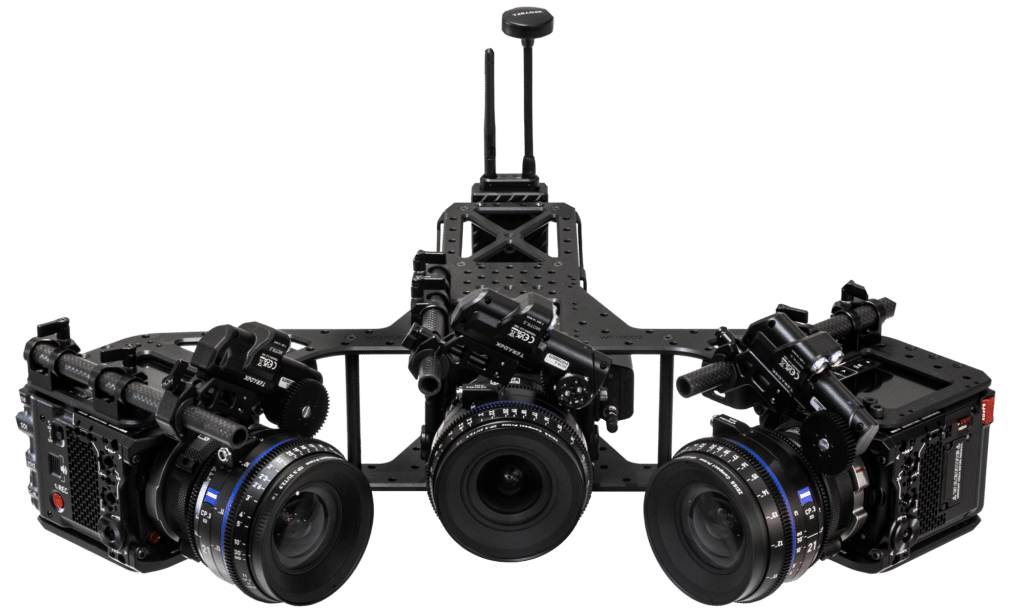

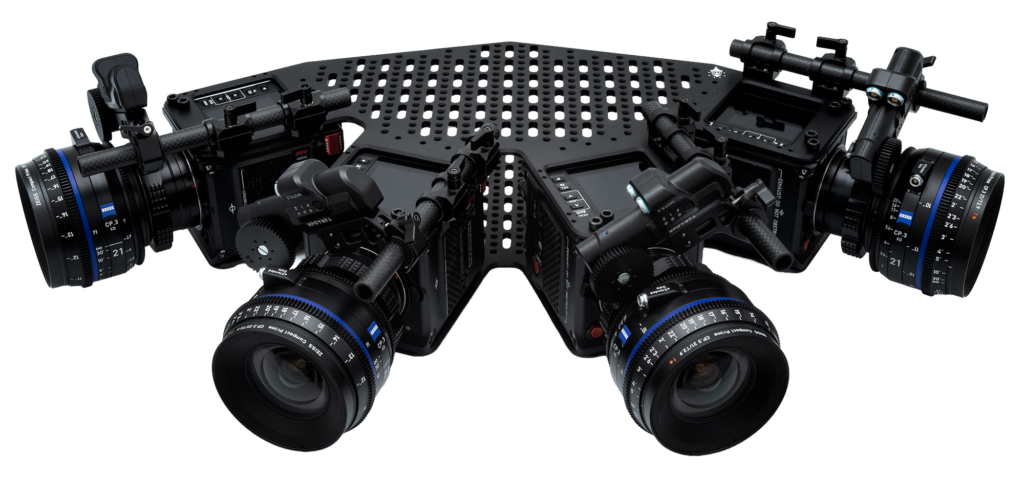

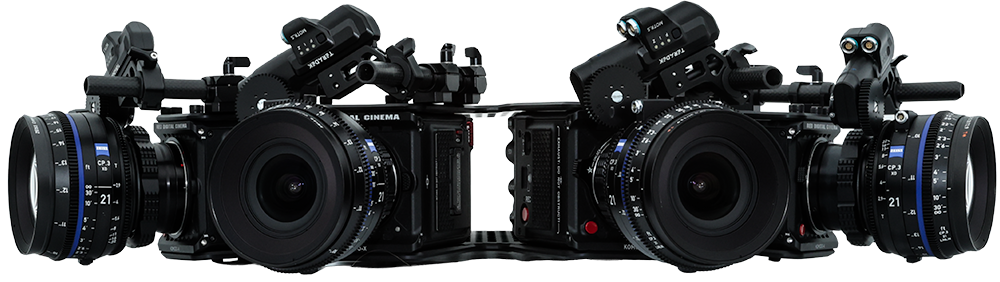

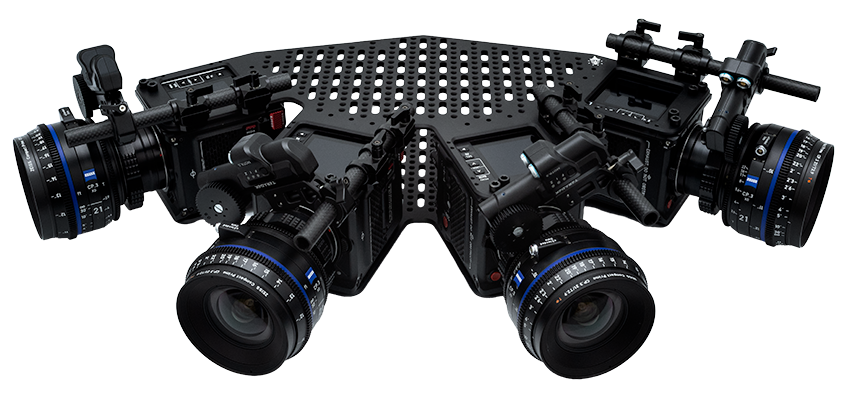

Machined from the ground up, Wonderfilm’s 3-Way VFX Array is equipped with three RED KOMODO-X cameras and three ZEISS 21mm CP.3 XD lenses. The cameras are light weight and capable of capturing approx. 15K, 160° FOV plates up to 80 FPS with a stunning level of detail for CGI shots. Teradek’s wireless ecosystem enables monitoring, lens control, & R/S from 1500 ft away.
RED KOMODO-X
Central to our ultra light weight VFX array platform are the three RED KOMODO-X cameras which capture a stunning level of detail with a 6K sensor at 80 FPS and 16.5+ stops of dynamic range.
ZEISS 21mm CP.3 XD Lenses

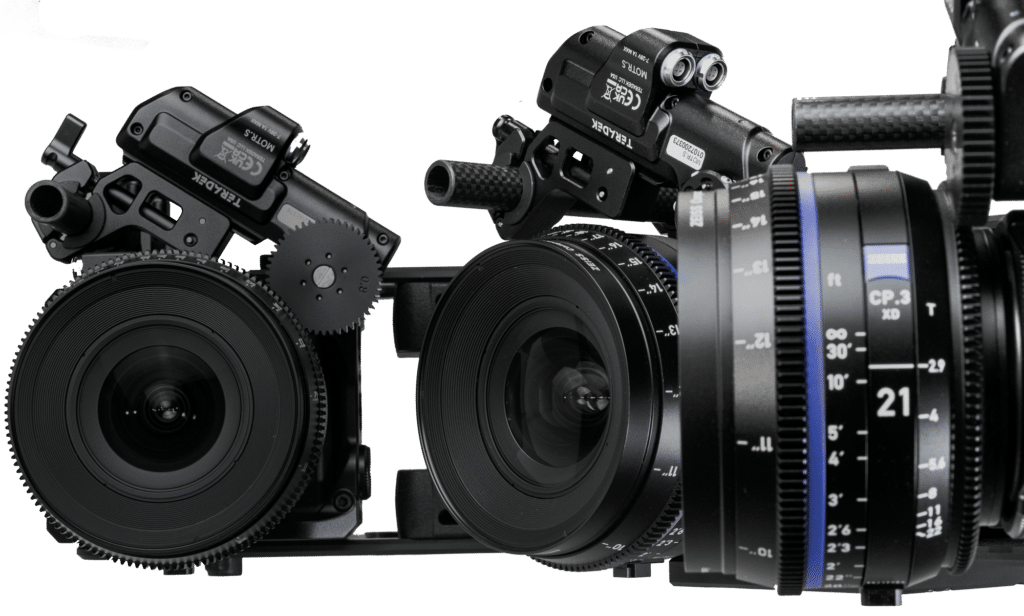

The best imaging capability and VFX plate composition are made possible with three identical ZEISS 21mm CP.3 XD lenses. Stitching is reliable and lens distortions can be mapped using ZEISS’s XD technology.
160° FOV
We manufactured our VFX Array to achieve maximum coverage from the RED KOMODO-X 6K sensor and the ZEISS 21mm CP.3 XD lenses, producing a combined 65.5° FOV per camera.
27.9% FOV Overlap
We applied our expertise gained from working on large-scale VFX shows to the design of our VFX Array. With the needs of large VFX vendors in mind, material from our array includes a 27.9% FOV overlap for reliable, perfect stitching.
Teradek Wireless Monitoring, Lens control
Our production-ready VFX Array rig is designed for big shows. A testament to this is the Teradek Bolt 6 ecosystem designed to make wireless monitoring, lens control, & R/S fully operationally up to 1500 ft.
Timecode / Genlock Sync
Our multicam system uses shared timecode and genlock synchronization across all cameras, ensuring precise frame-level alignment, sync, and seamless integration into professional post-production workflows.

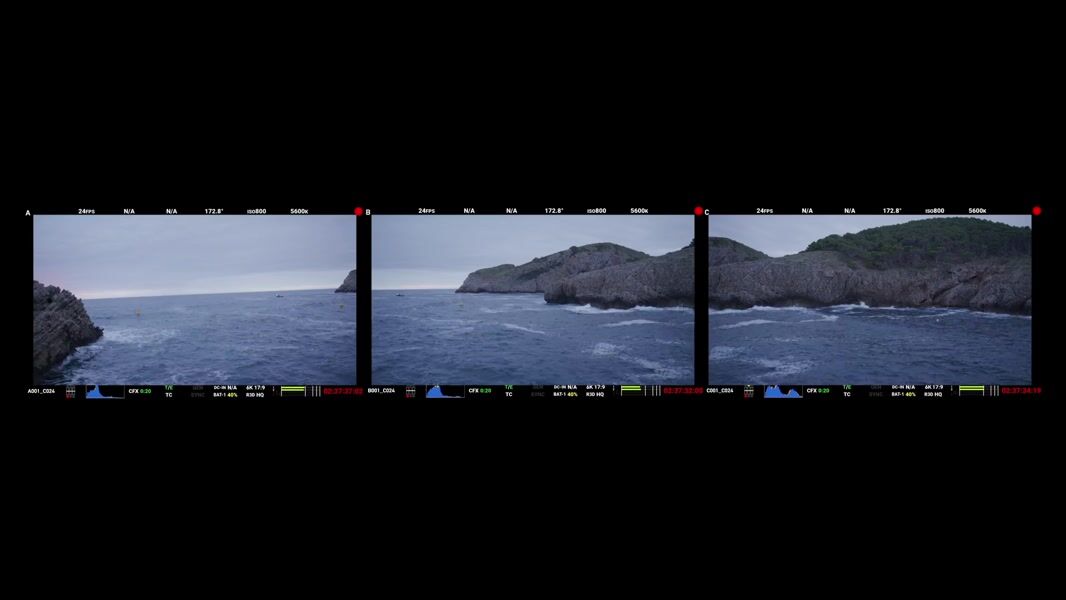

15K Stitched Plate
Arranged in a horizontal configuration, three RED KOMODO-X cameras—each equipped with a 19.9MP sensor and an effective resolution of 6144 × 3240—produce a stitched plate approximately 15,008 × 3240 pixels in size, incorporating a 27.9% horizontal field-of-view overlap (18.25° between adjacent cameras).
Custom built
Drone
Array

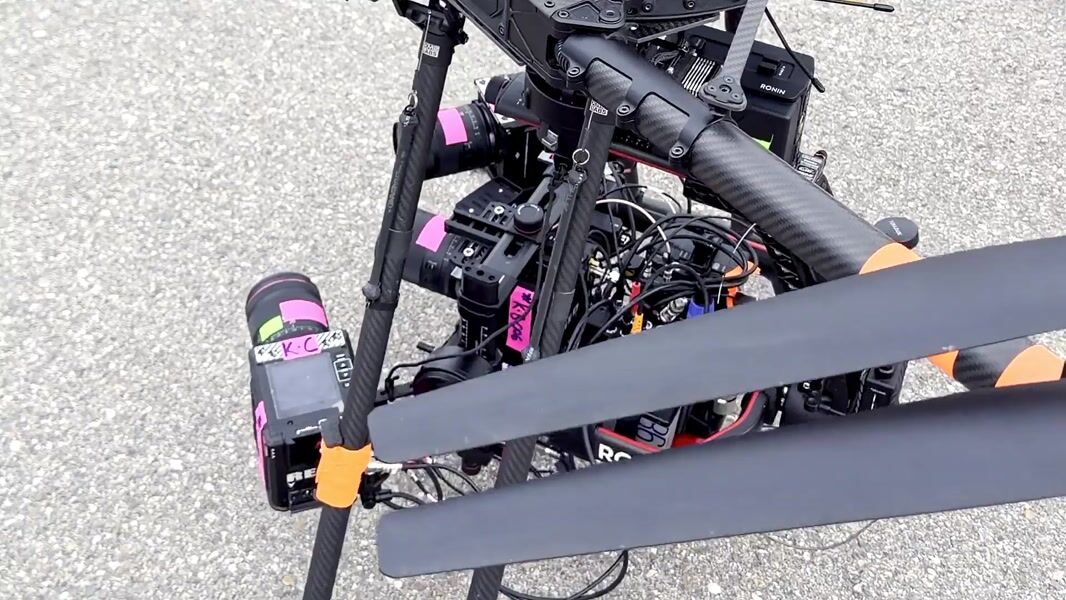

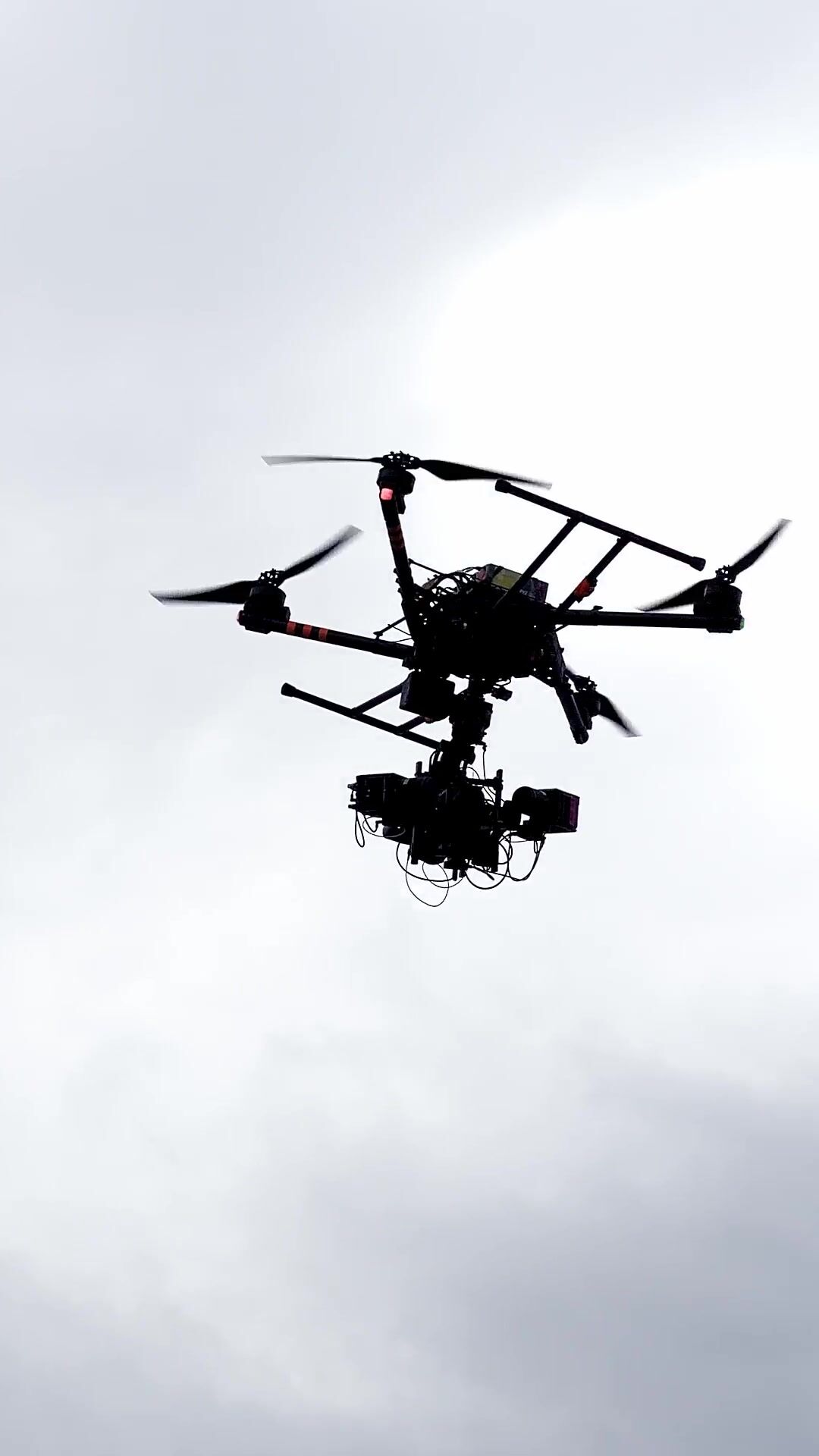

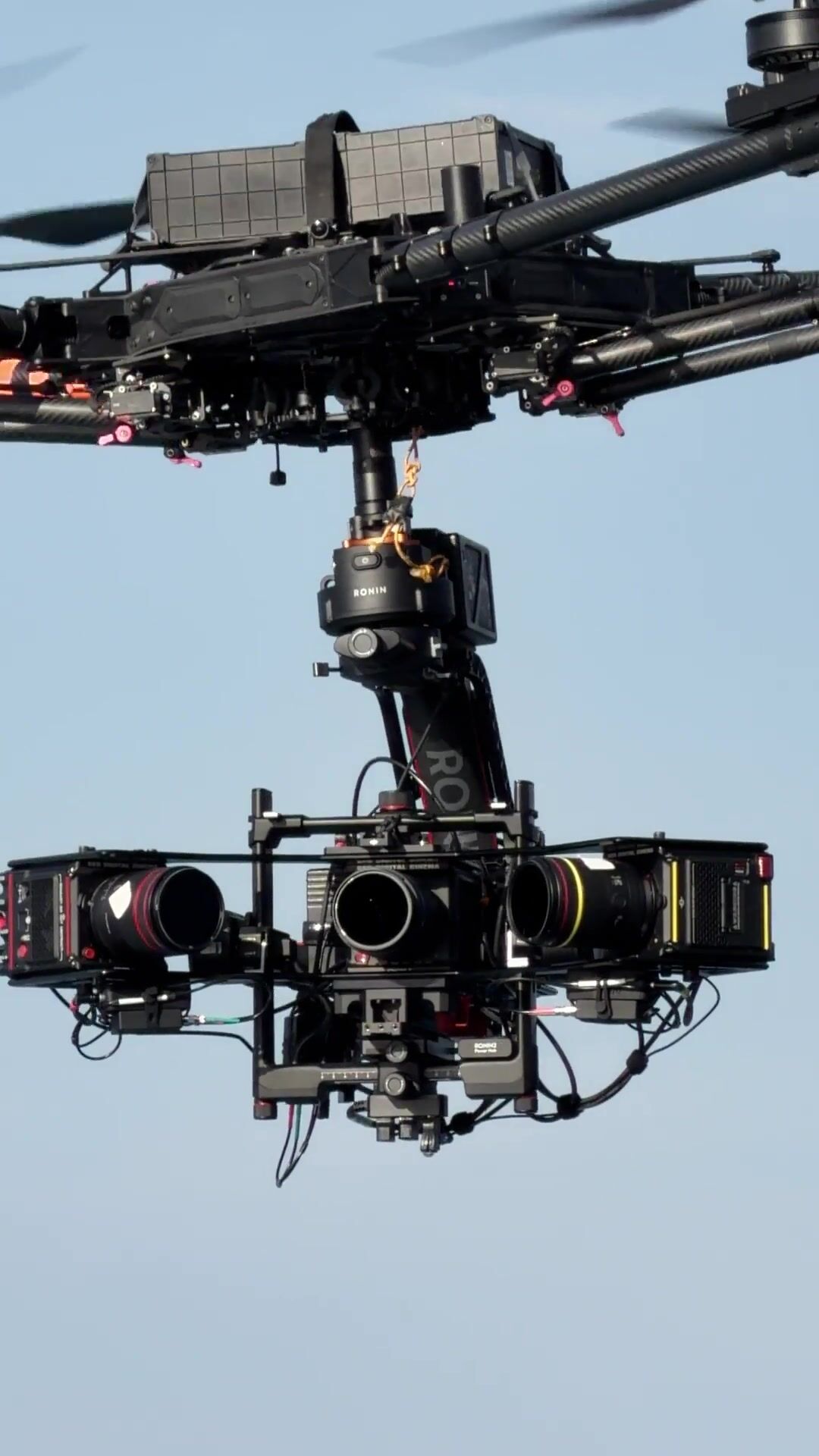

Weight isn’t just a spec — it’s the whole problem when every kilogram costs flight time. Wonderfilm’s RED KOMODO-X VFX Array was re-engineered for drone deployment from the ground up, delivering three synchronised cameras, full wireless control and frame-accurate sync at just 9.2kg — light enough for heavy-lift platforms like the DJI Alta X, without cutting a single feature a DOP would expect on the ground.
9.2KG

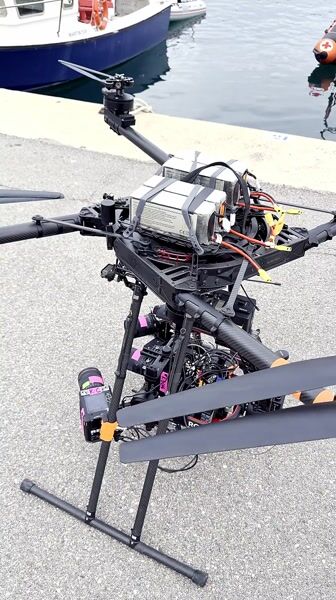

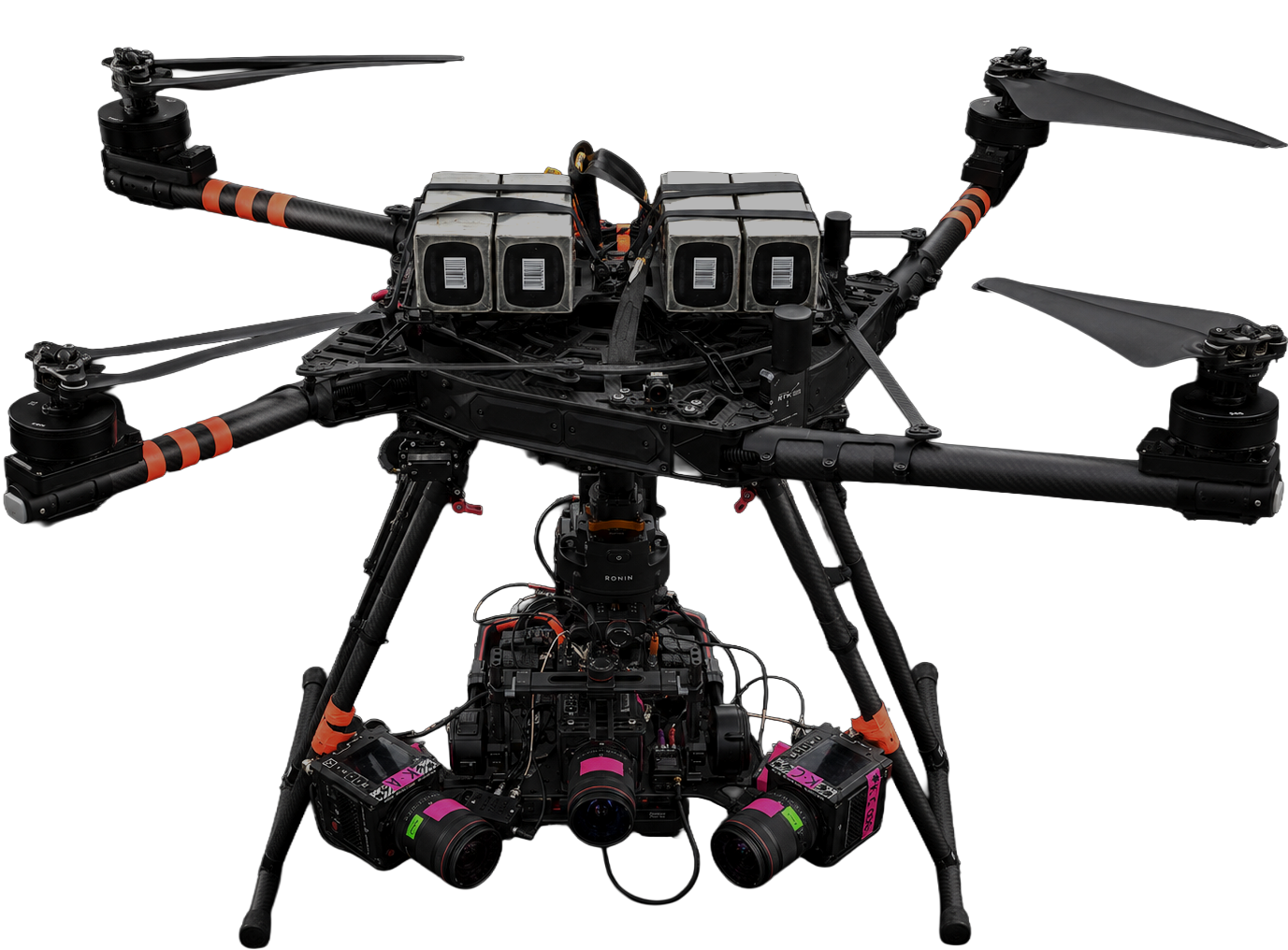

Wonderfilm’s drone-configured array weighs just 9.2kg — an incredibly lighter system — giving DOPs meaningfully more flight time on heavy-lift platforms like the DJI Alta X.
Engineered for Drone Deployment
Purpose-built to solve the biggest challenge in aerial VFX capture — weight. A three-camera array light enough to fly, without cutting a single feature.
More Flight Time, Less Compromise
Every kilogram saved is flight time gained. Careful centre-of-gravity engineering reduces counterbalance weight without sacrificing multicam control, sync, or image quality.

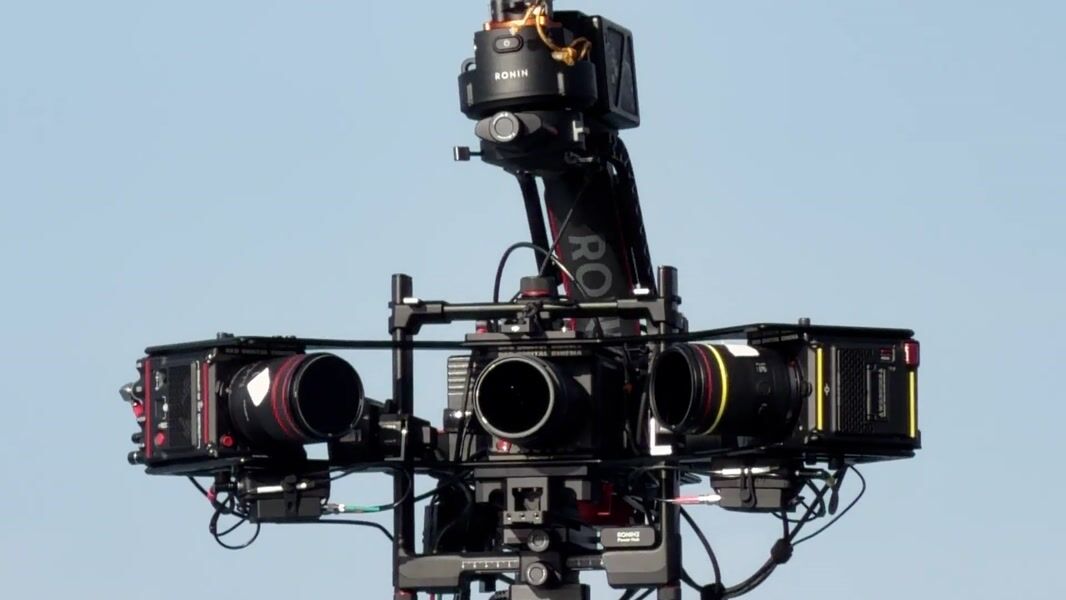

Fits the DJI Ronin 2, Built for Heavy-Lift Drones
Compact and lightweight enough for the Ronin 2 3-axis stabiliser, robust enough for heavy-lift drone platforms carrying three synchronised RED KOMODO-X cameras.
Clean Compositing
Made
for VFX / VP
We have a black book of Lead VFX Compositors, 3D Riggers, Matchmove Artists, DMP Artists, and Tracking Specialists. When designing our array, we made sure that the deliverables met the requirements of vendors we work with. The horizontal camera configuration was engineered to include a 27.9% field-of-view overlap—equating to 18.25° of shared coverage between each pair of adjacent cameras
27.9% FOV
Overlap
Zero Compromise
Weight came out of the assembly, not the imaging chain. The drone configuration carries the same three RED KOMODO-X bodies and the same matched ZEISS 21mm CP.3 XD lens set as the ground rig, delivering identical 160° coverage, 27.9% overlap and extended lens data for undistortion in post.
OUT OF CTRL.5

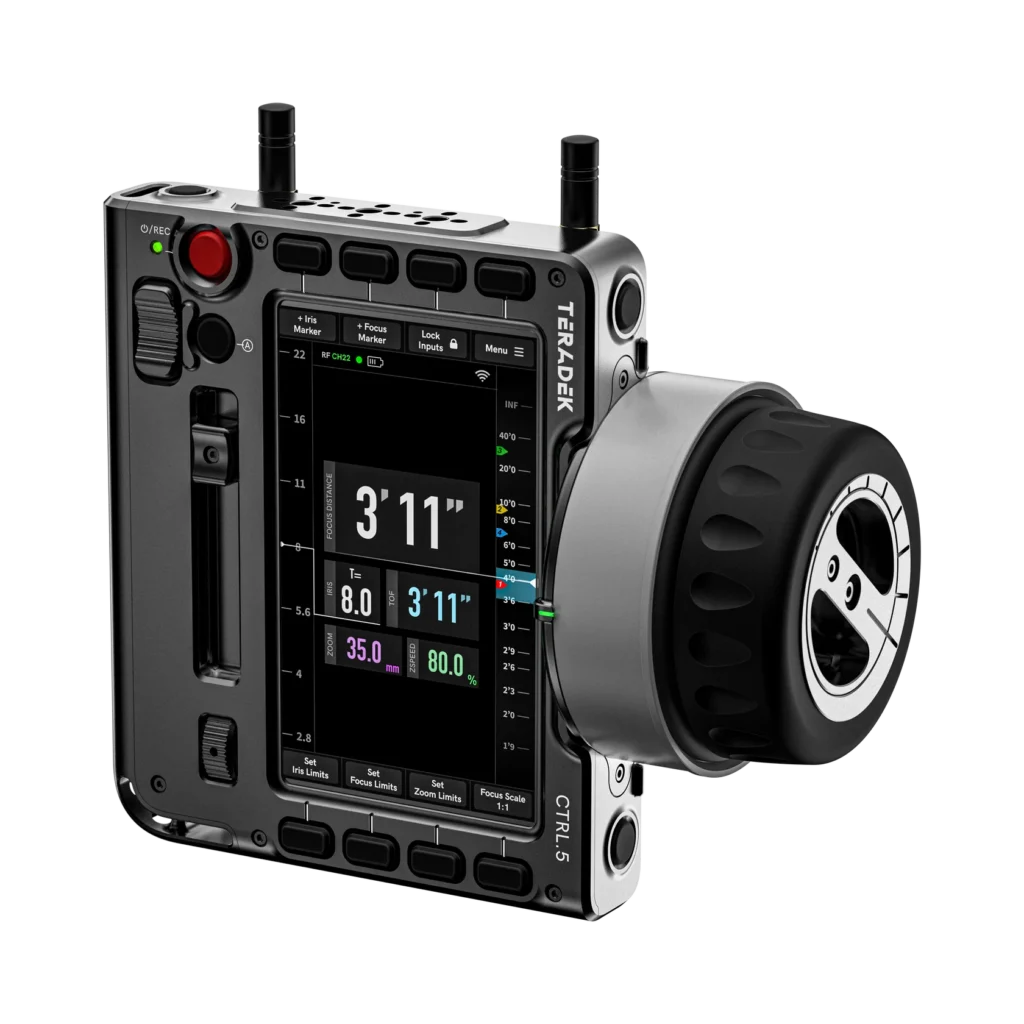

Teradek’s CTRL.5 is the ultimate handset we use for reliable, accurate control and tuning of multiple cameras and lenses at once. We can adjust exposure, focus, R/S and more.
Remote, Everything
We know all about the demands of a full-scale production such as Fast & Furious 9. Using the Teradek Bolt 6 LT 1500 TX/RX Deluxe kit alongside the CTRL.5 Controller, our production-ready rig is geared up for all on-set scenarios. Operational from a 1500 ft distance, the Teradek ecosystem enables multi-lens iris/focus control, run/stop triggering, and multi-camera wireless playback.
Nimble Enough

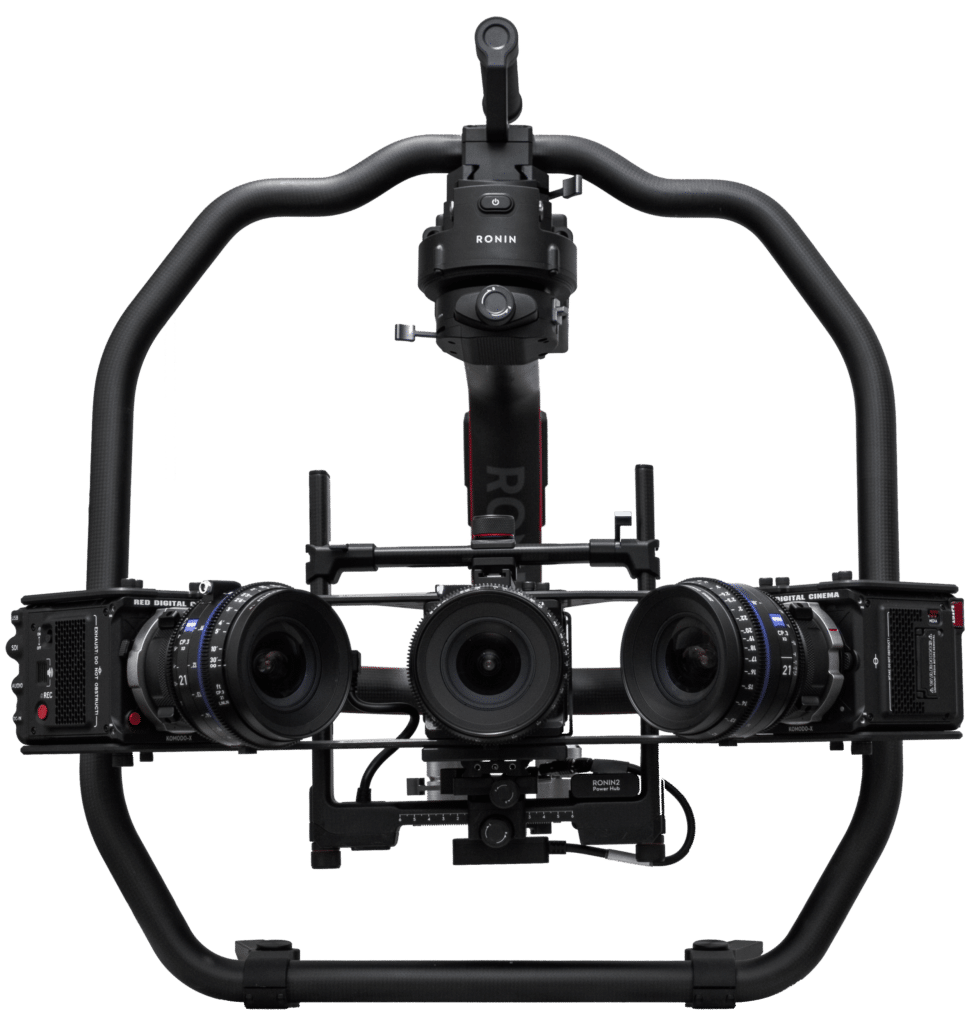

Our configuration is small and light enough to fit on the DJI Ronin 2 3-Axis stabiliser. For use on heavy lifter drones or on larger stabiliser heads such as the Freefly Mōvi XL.
Full turnkey solution.

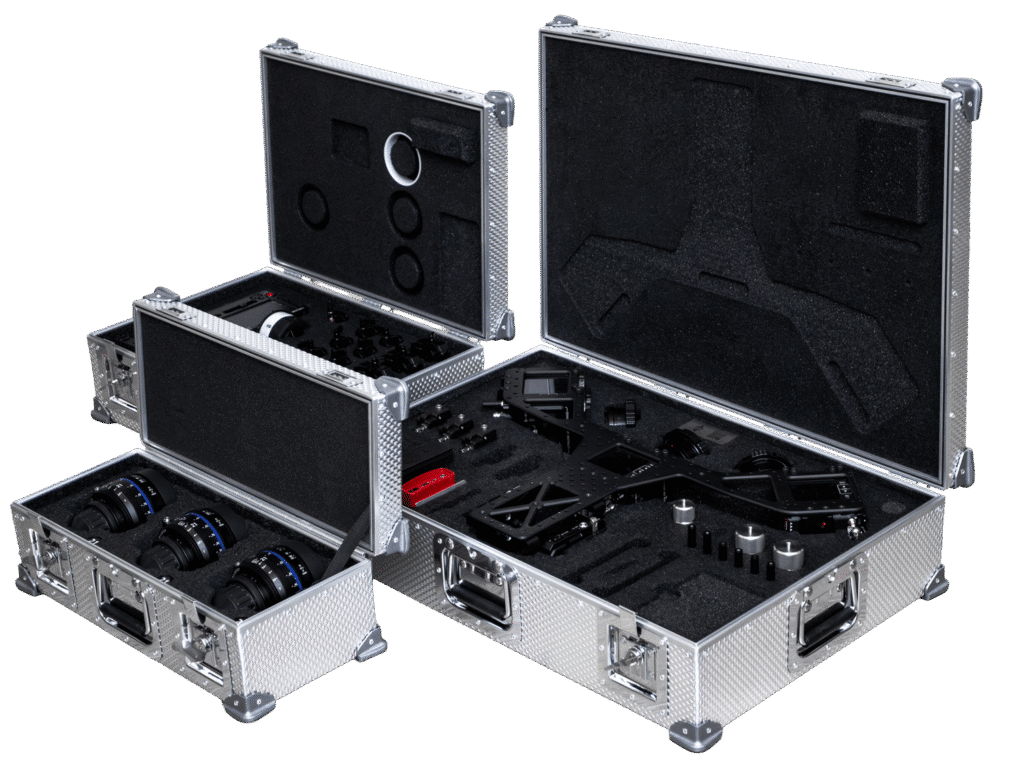

The kit arrives on set like this – a full turnkey solution ready to shoot in under 30 mins. A clean set up that can be assembled by us or handed to an operator.
Tech Spec
Every array assembly is designed and built in-house, so the configuration is matched to the job rather than the other way round. Whether the rig is going onto a gimbal, a heavy-lift drone, a tracking vehicle or a static mount, we can build or adapt an assembly to suit the payload, the platform and the shot.
Components are machined from aluminium sheet, with thickness selected for the application — lighter where every kilogram costs flight time, heavier where the rig has to take load on the ground. The standard Ronin 2 configuration sits comfortably inside the gimbal’s maximum payload, accessories included.
All our assemblies are lined with M4, 1/4″-20 and 3/8″ mounting threads for effectively unlimited mounting options, and each carries a detachable custom cheese plate at the base for additional mounting and threading.
If a shoot calls for a configuration we don’t already hold, talk to us. The assemblies are our own design, so we can build to the requirement.

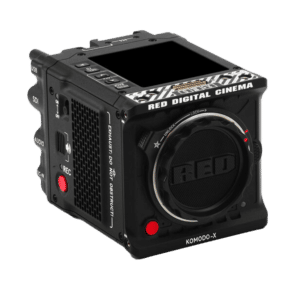

RED KOMODO-X Brains
6144 × 3240 px
QTY 3
| KOMODO-X Sensor Specs | |
|---|---|
| Sensor | KOMODO-X 19.9MP Super 35mm Global Shutter CMOS |
| Effective Pixels | 6144 × 3240 |
| Sensor Size | 27.03mm x 14.26mm (Diagonal: 30.56mm) |
| Dynamic Range | 16.5+ stops |

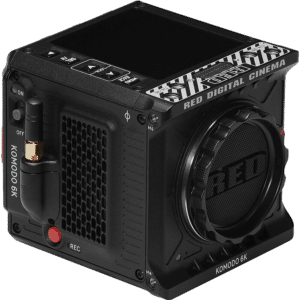

RED KOMODO 6K (Optional 4th Camera)
6144 × 3240 px
QTY 1
| KOMODO 6K | |
|---|---|
| Sensor | KOMODO 19.9MP Super35 CMOS sensor |
| Effective Pixels | 6144 x 3240 |
| Sensor Size | 27.03mm x 14.26mm (Diagonal: 30.56mm) |
| Dynamic Range | 16+ stops |
ZEISS 21mm T2.9 CP.3 XD lenses
Horizontal ~ 65.5° FOV
Vertical ~ 37.5° FOV
Diagonal ~ 72.5° FOV
QTY 3

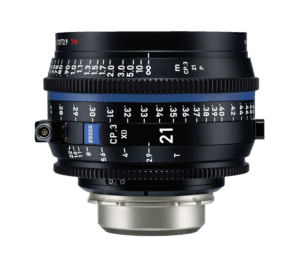

Our VFX array is equipped with a matched set of ZEISS CP.3 XD 21mm lenses, ensuring uniformity throughout the stitched image. The CP.3 lenses showcase ZEISS’s renowned clarity and precision, boasting full-frame coverage ideally suited for the RED KOMODO-X cameras. ZEISS eXtended Data Technology captures essential lens data for post-production teams, aiding in achieving optimal stitching results.
ZEISS eXtended Data
The ZEISS eXtended Data (XD) technology, based on the Cooke /i* technology, introduces enhanced opportunities for simplifying and improving the precision of workflows in image capture and processing, particularly in VFX. XD is a distinctive technology that also delivers real-time data on the lens’ distortion and shading characteristics.
ZEISS eXtended Data enhances efficiency and cost-effectiveness in VFX, especially for compositing material from our Array which provides frame-accurate details on:
- Lens distortion characteristics dependent on the focal point
- Lens shading characteristics related to the focal point and effective T-stop
ZEISS Cooke /i* technology offers crucial lens data that delivers frame-accurate details on various aspects:
- Lens name, type, and focal length of the lens
- Calibrated focusing distance
- Calibrated T-stop value
- Real-time depth-of-field data and hyperfocal distance
- Horizontal field of view
- Position of the entrance pupil
Wonderfilm’s VFX Array utilises the power of the Teradek ecosystem with the Bolt 6 LT 1500 feet TX/RX Deluxe kit and CTRL.5 controller. This kit enables wireless multiple-lens iris/focus control, run/stop triggering, and multiple-camera video playback. Everything on the rig can be controlled or monitored remotely up to 1500 feet away.
Stitched Plate
15008px x 3240px Stitched Plate
160° total FOV
18.25° FOV Overlap (27.9%)
Our Array produces a stitched image with (160° FOV), including a 27.9% overlap for reliable vendor processing. We understand that every vendor has a different set of requirements for their Array workflow, so we designed a simple, live stitching review system which can accommodate all scales of productions.
Contact
Lewis Andrews
We would like to understand the requirements of your project. You can contact us via WhatsApp, call us or email.
International VFX Array Hire
We offer international rentals for our VFX Array rigs and a wide range of film production equipment — no matter where you’re working, we can deliver.
VFX Array Hire
VFX Array Kit Hire for Stunning Visual Effects Plates
Wonderfilm’s RED KOMODO-X VFX Array Hire
- Wonderfilm Pictures’ RED KOMODO-X VFX Array is built production-ready for aerial and ground shoots, capturing top quality VFX plates and background plates.
- Made in-house by our expert engineer, our VFX Array provides crucial lens distortion and shading information for accurate compositing.
- Our design and configuration ensure reliable stitching with a 27.9% FOV overlap.
- For large scale film productions, VFX drone Plate Shoots, kit for Virtual Production and VFX vendors, our durable and light weight VFX Array uses three RED KOMODO-X cameras for efficient real-time high resolution data capture
VFX Kit Hire – Wonderfilm’s Array Technical Specifications
- 3 x RED KOMODO-X cameras with 6K Super 35mm sensors capturing 6144 x 3240 pixels, 80 FPS, 16.5+ stops dynamic range per camera
- 3 x ZEISS 21mm CP.3 XD lenses enhanced with ZEISS eXtended Data (XD) technology
- 15K stitched plates at 160° FOV
- Produces an approximate 15K stitched plate with 27.9% FOV overlap.
- 6-10mm aluminum adaptable with various mounts
- Teradek Bolt 6 wireless monitoring multi-camera and lens control
Teradek Bolt 6 Hire
Our VFX Array uses the Teradek Bolt 6 ecosystem for its wireless operations up to 1500 ft.
- Hire Wireless Teradek Bolt 6 LT (TX/RX) monitoring
- Hire Wireless multi-lens control MDR.S which enables wireless camera control R/S
- Hire CTRL.5 controller
VFX Array Hire for Ground and Drone Plate Shoots
- Built for stability on the ground and optimized for aerial use with payload limits in mind for drones, our VFX Array is available to hire for any production.
How to Hire our VFX Array Kit
Contact us for VFX Array Hire options, costs, and other VFX equipment hire availability.
Visit our Contact Us section below a quote for all VFX equipment hire options.
You can also contact us via email lewis@wonderfilmpictures.com or call us on +44 (0) 7528 481199 to discuss your VFX hire requirements.
FAQ
Each hire is priced around the specific job. Please email lewis@wonderfilmpictures.com with the booking length and any relevant production details, and we will prepare a bespoke rental quote.
Our VFX reference balls are built as a single half chrome, half grey ball. By rotating the ball for camera, both the chrome and grey reference can be captured from the same piece of kit.
The array captures a 160° field of view, with 27.9% overlap between the camera views to support a more reliable stitching process.
We can create additional array configurations depending on the shoot requirements. Please contact lewis@wonderfilmpictures.com to discuss the setup you need.
Yes. Around 90% of our work is international, and we can supply kit rentals worldwide, including the VFX Array rig.
When the kit is not out on hire it is usually based in the UK, but we plan each rental logistically so the equipment can be shipped to productions anywhere in the world.
Our standard array package includes a technician who can supervise the equipment. We also work with ACs who can manage the rig on set, and the Ronin 2 array is turnkey enough to be handed over to an operator.
Yes. We can process the array material after the shoot and supply deliverables according to the VFX vendor’s required specification.
We do not currently provide live stitching. We do offer live playback through a Teradek Bolt 6 1500, allowing the array camera feeds to be viewed without the stitched overlap.
On the RED KOMODO-X 6K sensor, the ZEISS 21mm CP.3 XD lens gives approximately 65.5° horizontal field of view and 37.5° vertical field of view.
Yes. The ZEISS lenses we use, including the 21mm set, provide extended lens data that can support distortion mapping, undistortion, and the ZEISS/Nuke plugin workflow.
Yes. The RED KOMODO-X VFX Array Rig technical specification is available on the array page.
